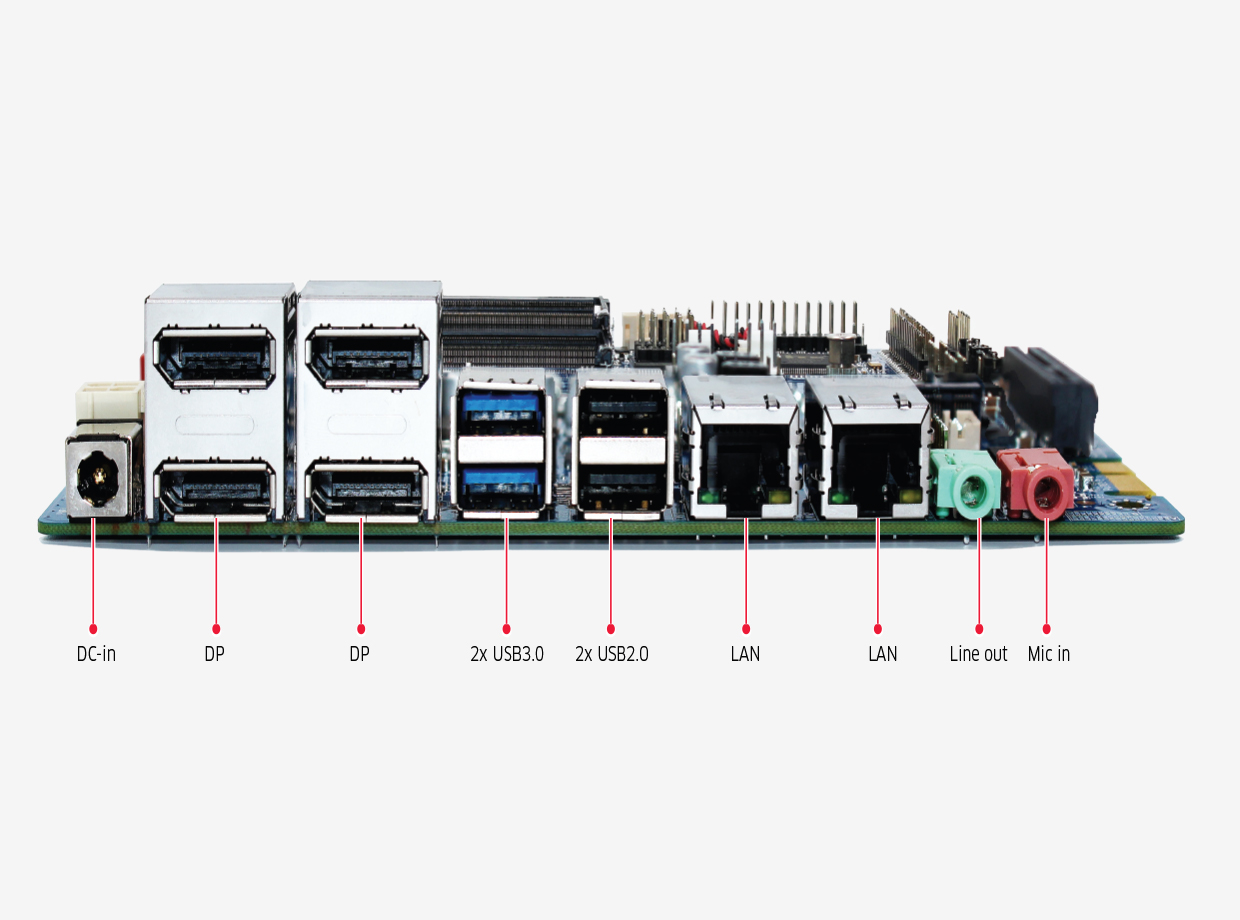

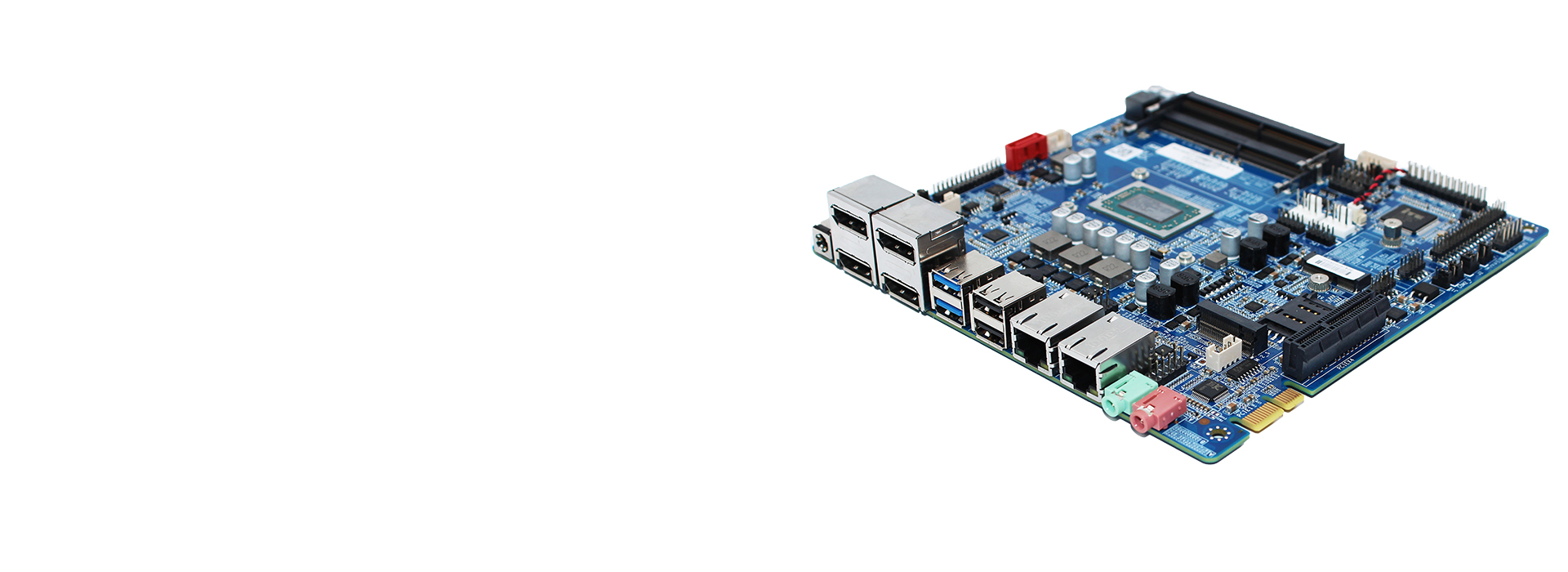

The new Maxtang mini-ITX embedded motherboard FP10 is based on the AMD Ryzen™ 2500U (quad-core) and V1605B (quad-core) and provides a complete PC platform with high performance. Coming from the embedded V1000 processor family and mobile processor family, these CPUs combine the incredible performance of the pioneering “Zen” architecture and “Vega” GPU in a single chip with thermal design power (TDP) as low as 12W/15W. Four independent 4K+ DP displays are supported in addition to dual-channel DDR4 SO-DIMM memory, dual 1-Gigabit Ethernet controllers, and M.2 expansion for Wi-Fi and SSD modules. The TPM module for added security is also optional. It also has rich interfaces as 2 x USB2.0, 2 x USB3.0, 1 x Mic-in, 1 x Line-out and 2 x LAN, catering to most requirements in the market.

The FP10 is an ideal solution for applications requiring a high speed communications front-end like a mini-server or high-resolution display products like electronic gaming machines, medical imaging, interactive digital signage, thin clients, or PDS terminals.

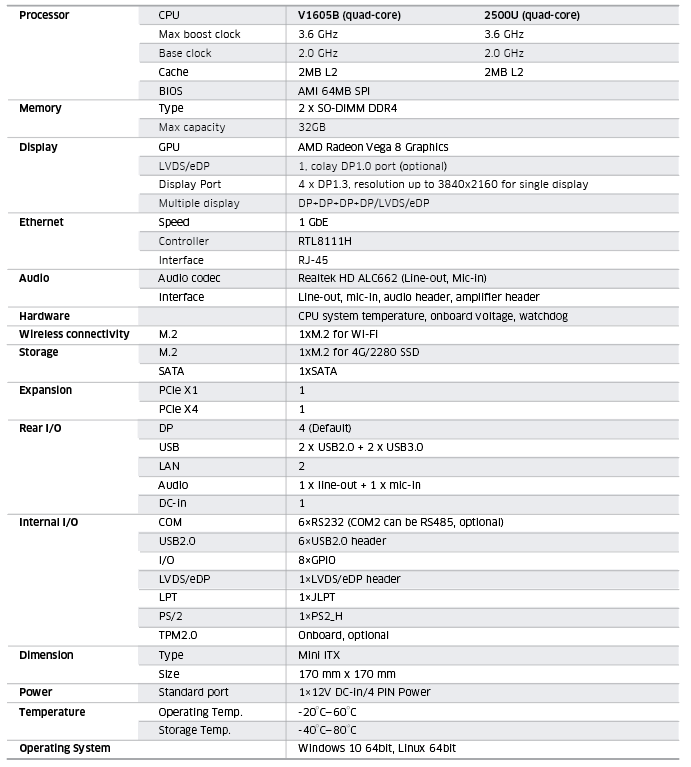

• CPU: Ryzen™ 5 2500U and Ryzen™ Embedded V1605B


• Memory: Dual channel SO-DIMM DDR4 (max 32 GB)


• Display: Up to 4 DP displays (LVDS/eDP optional)


• Ethernet: Support dual 1GbE ethernet cards


• Storage: SATA3.0, M.2, PCIe X4, PCIe X1


• Power: 12V DC input


• Security: TPM 2.0 supported (optional)
